RAX Low Loader

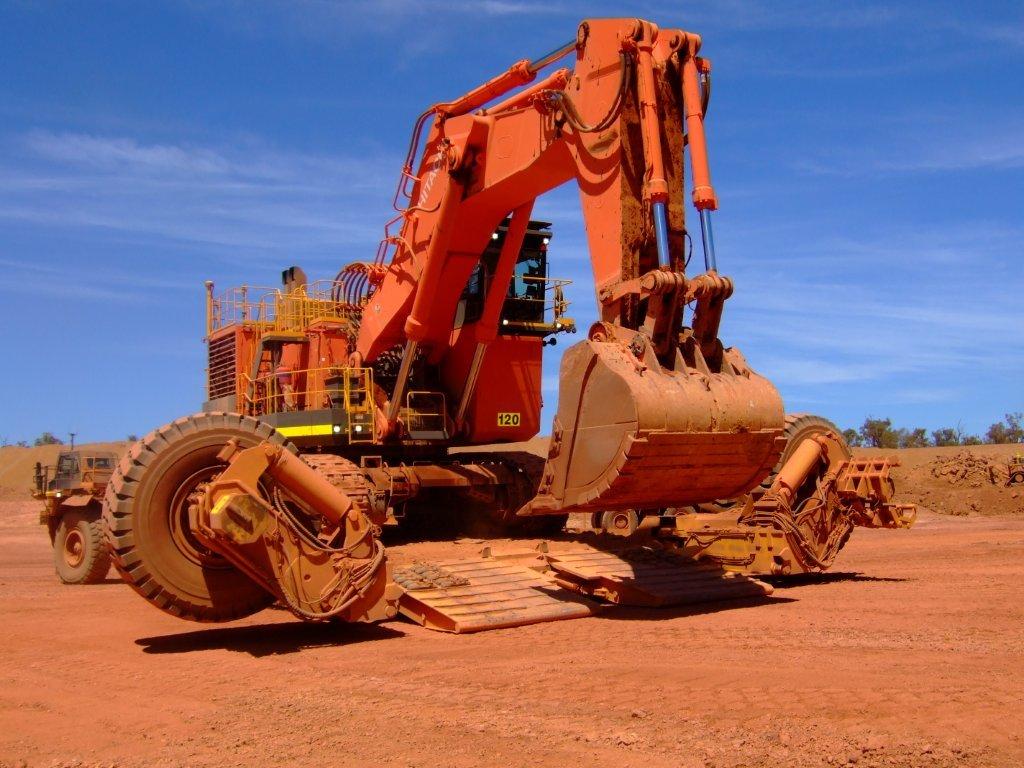

With capacities from 150 tonnes to 800 tonnes the patented Bosich Rear Axle eXpanding low loaders are designed for transporting powered mine site equipment such as excavators, dozers and drills around mine sites. The low loaders can also be used to move any suitable objects like tanks and dragline and excavator buckets as necessary.

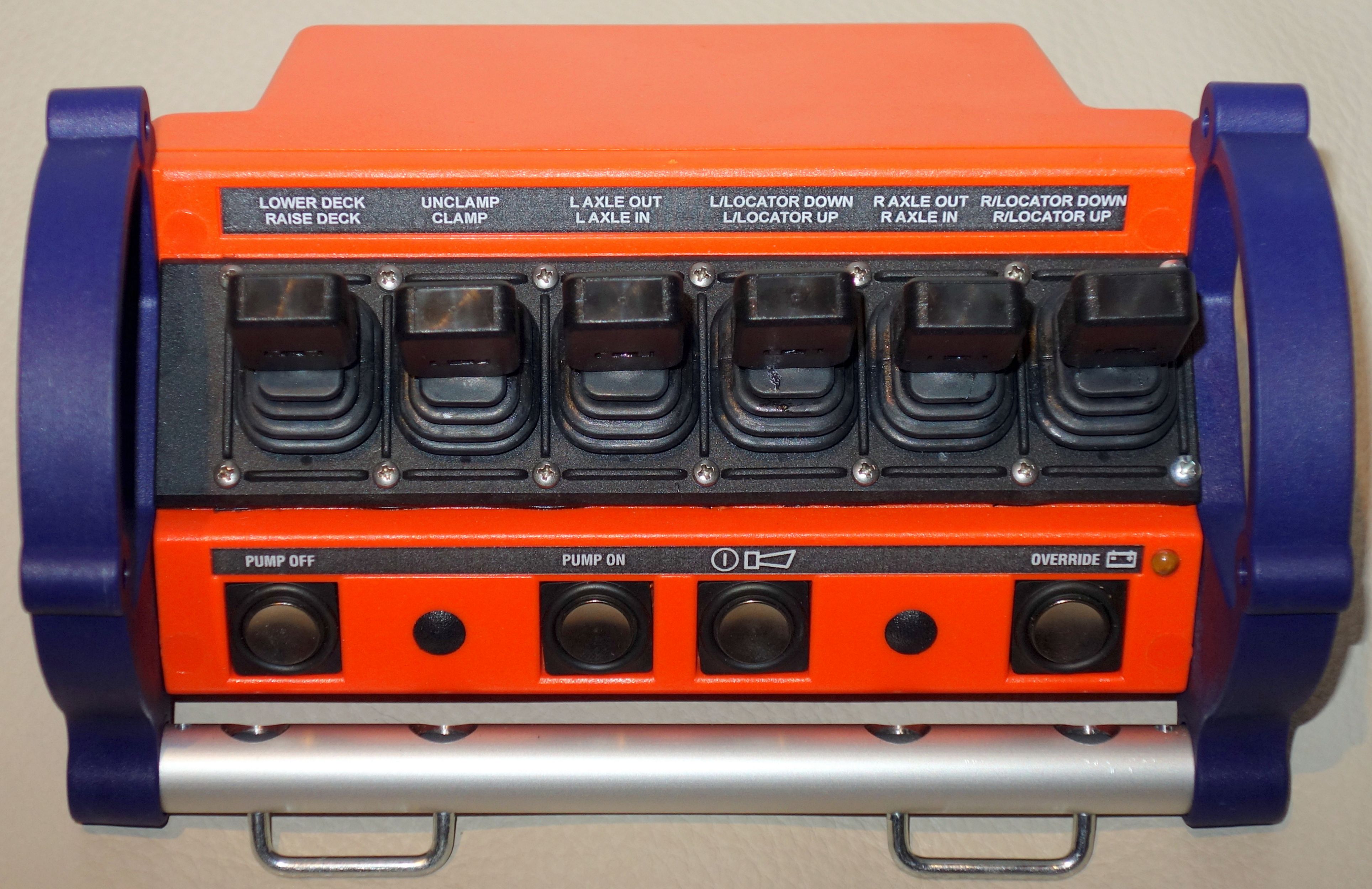

Our patented Rear Axle Expanding Low Loader is a breakthrough design that enables the rear of the loading deck to be lowered to the ground. This is accomplished by using a remote control to activate the hydraulically adjustable suspension cylinders.
Once the rear deck is on the ground the remote control is also used to pivot “expand” the rear wheels and lower the loading ramps to give the operators unrestricted access to pinpoint loads on the large deck.
Some models also have the loading ramps built in to the load deck for even quicker and simpler operation.
Model Overview
| RAX Model | Typical Prime mover Class | Typical Loads | Approx Dimensions | Brake Cooling | Ramps | Tyres required |
|---|---|---|---|---|---|---|
| 150 TONNE | Cat 777 | 150t HE, Drills, Dozers and Wheel loaders | 26000 x 7000 | Optional | in platform | 4 x 27.00R49 |
| 210 TONNE | Cat 777 | 210t HE, Drills, Dozers and Wheel loaders | 26000 x 7000 | Yes | in platform | 4 x 30.00R51 |
| 280 TONNE | Cat 785 | 290t HE, Drills, Dozers and Wheel loaders | 27000 x 7500 | Yes | fold down | 4 x 37.00R57 |
| 360 TONNE | Cat 789 | 360t HE, Drills, Dozers and Wheel loaders | 27000 x 7500 | Yes | fold down | 4 x 40.00R57 |
| 410 TONNE | Cat 793 | 410t HE, Drills, Dozers and Wheel loaders | 28000 x 8000 | Yes | fold down | 4 x 46/90R57 |
| 600 TONNE | Cat 797 | 600t HE, Drills, Dozers and Wheel loaders | 29000 x 8500 | Yes | fold down | 4 x 59/80R63 |
| 850 TONNE | Cat 797 | 850 HE, Drills, Dozers and Wheel loaders | 35000 x 109000 | Yes | fold down | 8 x 59/80R63 |
Standard Equipment
- Hi tow for prime mover
- Trailer Axle Brakes
- Remote control for trailer operation
- Suspension system
- Hydraulics for brake actuation
- Integration with prime mover brakes
- Trailer Lighting system
- PLC electric control
- Standard OEM rear axles, hubs and brakes
- Operator Training
- Operators Manual
- Maintenance Manual
- Comprehensive Parts Manual
Optional Equipment
- Brake Cooling
- Tyres and Rims
- Additional Lighting
Every model is specifically designed for your application so we invite you to review the technical data and contact us for site specific specifications, performance data and features and benefits.
See Also:
Benefits of design
Sample Performance Data.
Sample Return on Investment calculator.
Other features include
The remote controlled one man operation is safe and quick and there is no need to disconnect the loader from the prime mover to load and unload equipment. This means safer and quicker operation throughout the process.
Integrated loading ramp at the beaver tail on 150t and 240t models. This reduces maintenance requirements and speeds loading times.
All hydraulics run from the prime mover so there are no ancillary pumping systems on the trailer…
